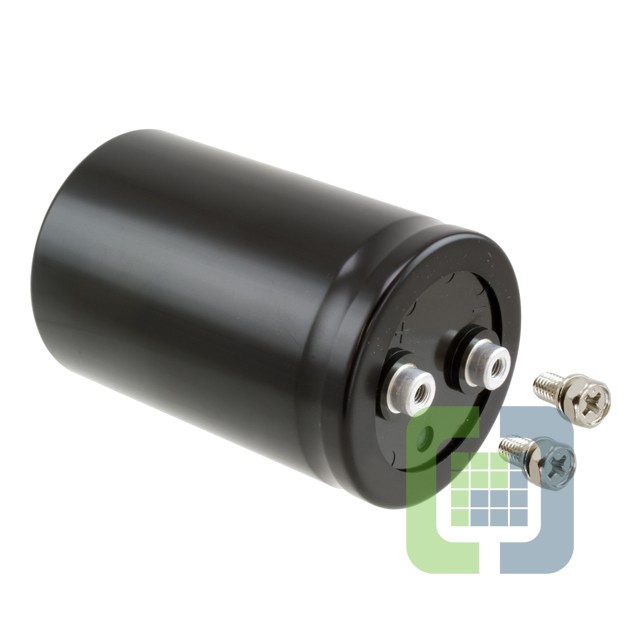

450LSQ2200MNB64X99
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet 450LSQ2200MNB64X99 Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$42.2525
- 10$39.90338
- 100$32.27452
Quote It
Technical Details
- Series:LSQ
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:7.2 A @ 120 Hz
- Ripple Current @ High Frequency:8.496 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.110" (28.20mm)
- Size / Dimension:2.520" Dia (64.00mm)
- Height - Seated (Max):4.016" (102.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
