B41458B7100M003
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant

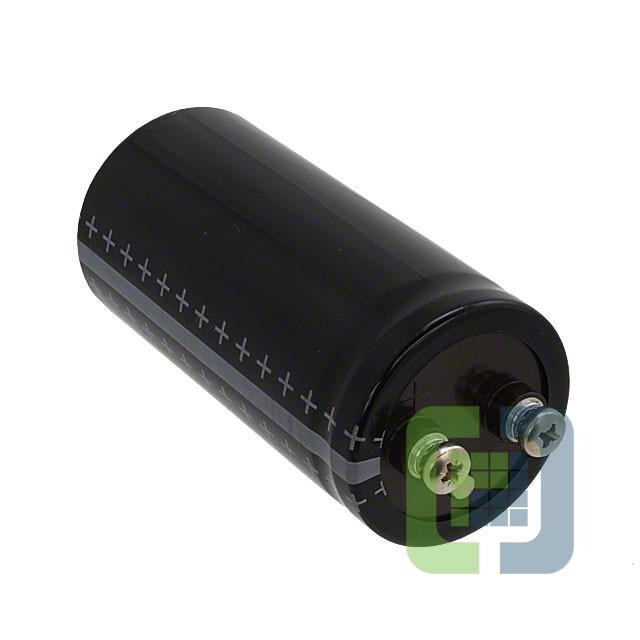

- DescriptionCAP ALUM 100000UF 20% 40V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41458B7100M003 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$45.2498
- 50$45.2498
Quote It
Technical Details
- Series:B41458
- Package:Bulk
- Part Status:Active
- Capacitance:100000 µF
- Tolerance:±20%
- Voltage - Rated:40 V
- ESR (Equivalent Series Resistance):8.2mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:19 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:7 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.532" Dia (64.30mm)
- Height - Seated (Max):4.201" (106.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
