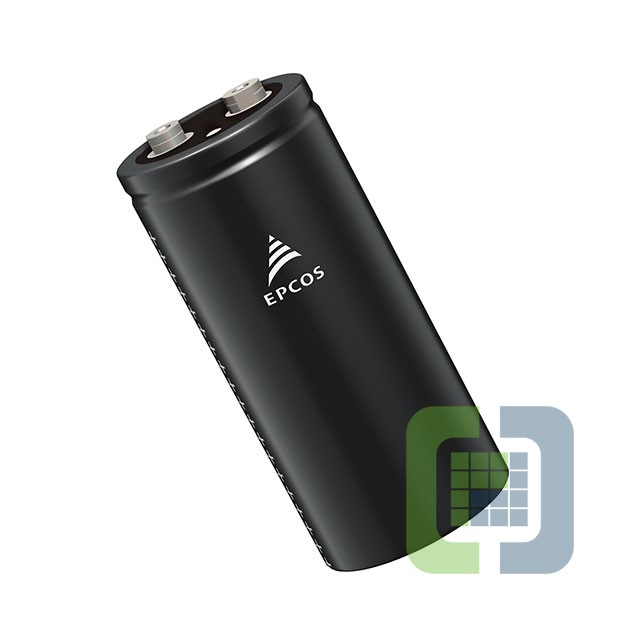

B41554E8159Q000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 15000UF 63V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41554E8159Q000 Datasheet
-
ECAD Model
- Share
In Stock: 166
Can ship immediately
Pricing:
- 1$48.29
- 10$45.607
Quote It
Technical Details
- Series:B41554
- Package:Bulk
- Part Status:Obsolete
- Capacitance:15000 µF
- Tolerance:-10%, +30%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):15mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 125°C
- Operating Temperature:-55°C ~ 125°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:11 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:11 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.532" Dia (64.30mm)
- Height - Seated (Max):3.217" (81.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
