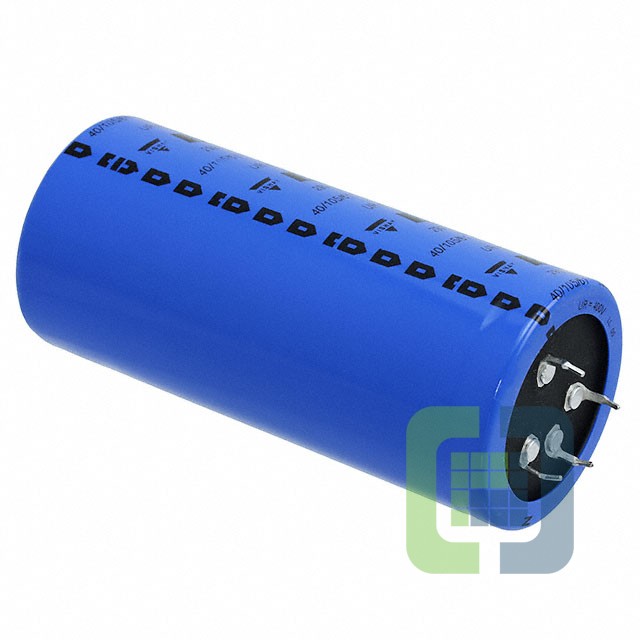

MAL229957182E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1800UF 20% 450V SNAP
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL229957182E3 Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$49.23189
- 10$46.49678
- 100$37.60769
Quote It
Technical Details
- Series:299 PHL-4TSI
- Package:Bulk
- Part Status:Active
- Capacitance:1800 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):70mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:6.36 A @ 100 Hz
- Ripple Current @ High Frequency:9.54 A @ 10 kHz
- Impedance:50 mOhms
- Lead Spacing:0.886" (22.50mm)
- Size / Dimension:1.772" Dia (45.00mm)
- Height - Seated (Max):4.016" (102.00mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:Radial, Can - Snap-In - 4 Lead
