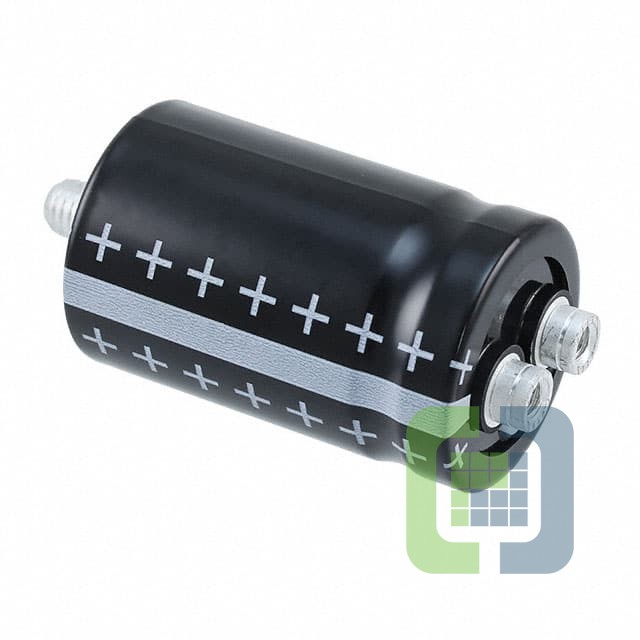

B43721A5338M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3300UF 20% 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43721A5338M000 Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
- 1$54.3312
- 50$54.3312
Quote It
Technical Details
- Series:B43721
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):38mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.37 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:65 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.531" Dia (64.30mm)
- Height - Seated (Max):4.201" (106.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
