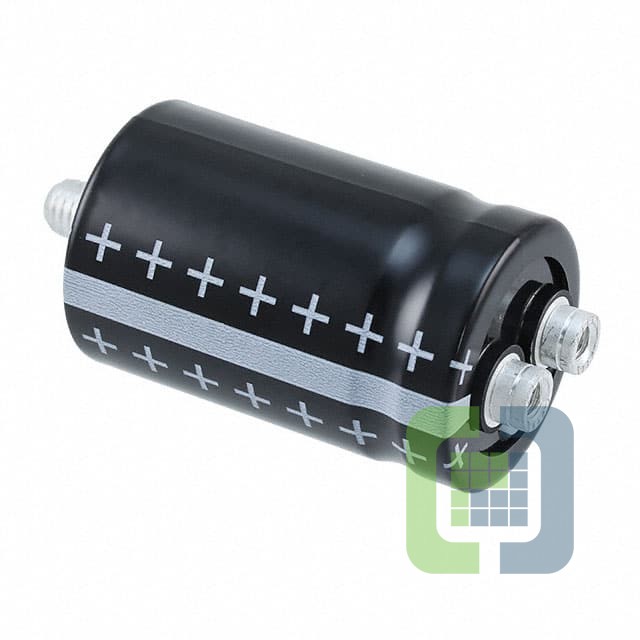

B43762A4478M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 4700UF 20% 350V SCREW
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 186
Can ship immediately
Pricing:
- 1$55.4678
Quote It
Technical Details
- Series:B43762
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):18mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:12.5 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:28 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.531" Dia (64.30mm)
- Height - Seated (Max):5.185" (131.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
