ALS80A164QM063
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant

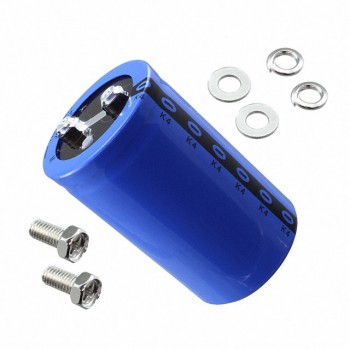

- DescriptionCAP ALUM 160000UF 20% 63V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet ALS80A164QM063 Datasheet
-
ECAD Model
- Share
In Stock: 101
Can ship immediately
Pricing:
- 1$57.40292
- 48$57.40292
Quote It
Technical Details
- Series:ALS80
- Package:Bulk
- Part Status:Active
- Capacitance:160000 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):7mOhm @ 100Hz
- Lifetime @ Temp.:9000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:29.9 A @ 100 Hz
- Ripple Current @ High Frequency:31.8 A @ 10 kHz
- Impedance:8 mOhms
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.543" Dia (90.00mm)
- Height - Seated (Max):5.236" (133.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
