ALS70P753NW100
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant

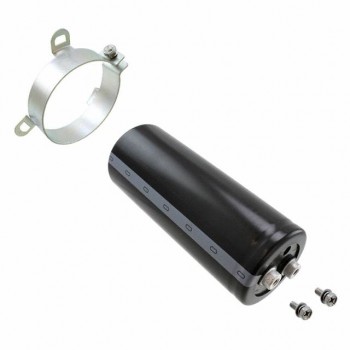

- DescriptionCAP ALUM 75000UF 20% 100V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet ALS70P753NW100 Datasheet
-
ECAD Model
- Share
In Stock: 171
Can ship immediately
Pricing:
- 1$57.73479
- 48$57.73479
Quote It
Technical Details
- Series:ALS70
- Package:Bulk
- Part Status:Active
- Capacitance:75000 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):9mOhm @ 100Hz
- Lifetime @ Temp.:20000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:30.9 A @ 100 Hz
- Ripple Current @ High Frequency:33.1 A @ 10 kHz
- Impedance:9 mOhms
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.031" Dia (77.00mm)
- Height - Seated (Max):6.732" (171.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
