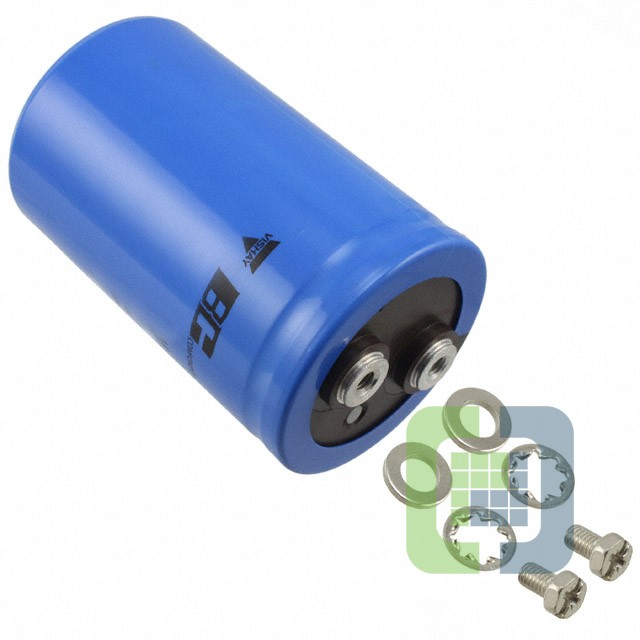

MAL210447102E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 20% 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL210447102E3 Datasheet
-
ECAD Model
- Share
In Stock: 179
Can ship immediately
Pricing:
- 1$60.1
- 112$43.725
Quote It
Technical Details
- Series:104 PHL-ST
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):116mOhm
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:8.85 A @ 10 kHz
- Impedance:66 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.559" Dia (65.00mm)
- Height - Seated (Max):4.339" (110.20mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
