CG483U025X4C
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant

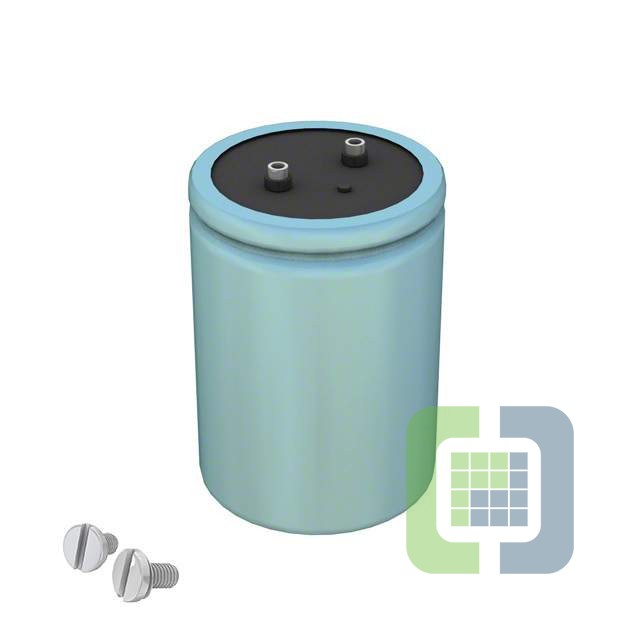

- DescriptionCAP ALUM 48000UF 25V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet CG483U025X4C Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
- 1$60.1965
- 20$55.4085
Quote It
Technical Details
- Series:CG
- Package:Bulk
- Part Status:Active
- Capacitance:48000 µF
- Tolerance:-10%, +75%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):5mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:25.2 A @ 120 Hz
- Ripple Current @ High Frequency:28.98 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:3.000" Dia (76.20mm)
- Height - Seated (Max):4.125" (104.78mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
