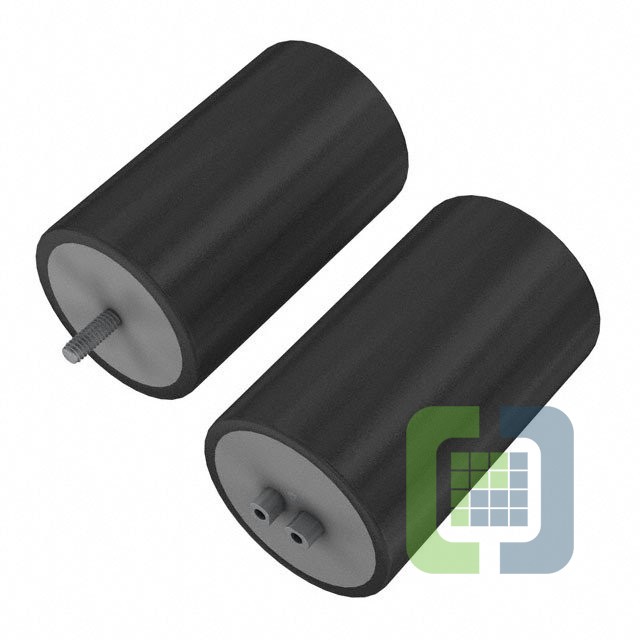

PEH200UO4220MB2
KEMET
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2200UF 20% 350V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet PEH200UO4220MB2 Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
- 1$62.30938
- 48$56.64497
Quote It
Technical Details
- Series:PEH200
- Package:Bulk
- Part Status:Active
- Capacitance:2200 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):41mOhm @ 100Hz
- Lifetime @ Temp.:15000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.4 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:24 mOhms
- Lead Spacing:1.122" (28.50mm)
- Size / Dimension:2.622" Dia (66.60mm)
- Height - Seated (Max):4.213" (107.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
