B41456B9339M003
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant

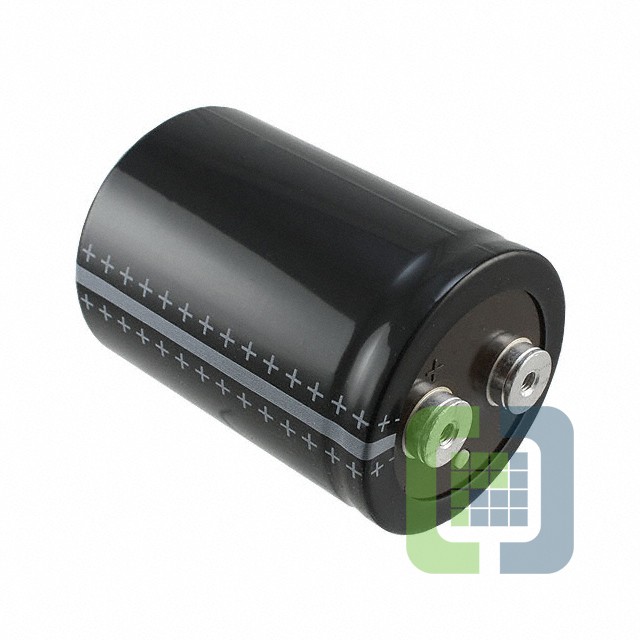

- DescriptionCAP ALUM 33000UF 20% 100V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41456B9339M003 Datasheet
-
ECAD Model
- Share
In Stock: 153
Can ship immediately
Pricing:
- 1$62.925
- 32$62.925
Quote It
Technical Details
- Series:B41456
- Package:Bulk
- Part Status:Active
- Capacitance:33000 µF
- Tolerance:±20%
- Voltage - Rated:100 V
- ESR (Equivalent Series Resistance):6mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:19 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:7 mOhms
- Lead Spacing:1.248" (31.70mm)
- Size / Dimension:3.028" Dia (76.90mm)
- Height - Seated (Max):4.201" (106.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
