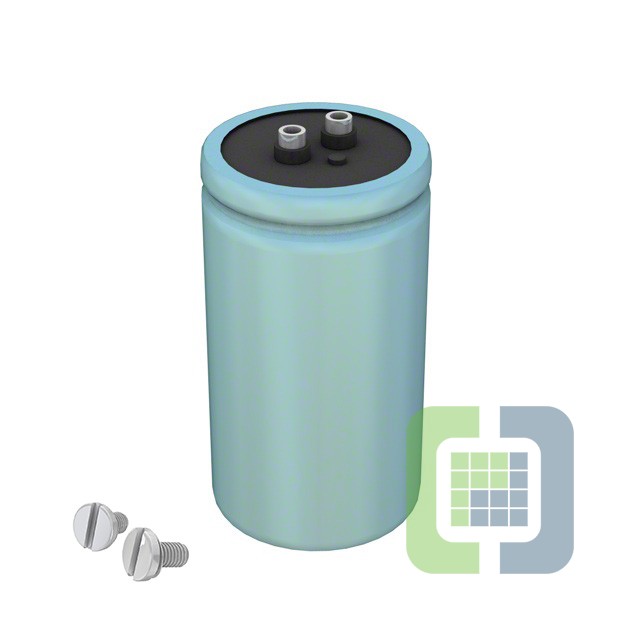

CGH102T450V3L
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1000UF 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet CGH102T450V3L Datasheet
-
ECAD Model
- Share
In Stock: 113
Can ship immediately
Pricing:
- 1$63.3969
- 42$58.34214
Quote It
Technical Details
- Series:CGH
- Package:Bulk
- Part Status:Active
- Capacitance:1000 µF
- Tolerance:-10%, +50%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):83.4mOhm @ 120Hz
- Lifetime @ Temp.:1000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:4.8 A @ 120 Hz
- Ripple Current @ High Frequency:5.904 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:2.000" Dia (50.80mm)
- Height - Seated (Max):3.625" (92.08mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
