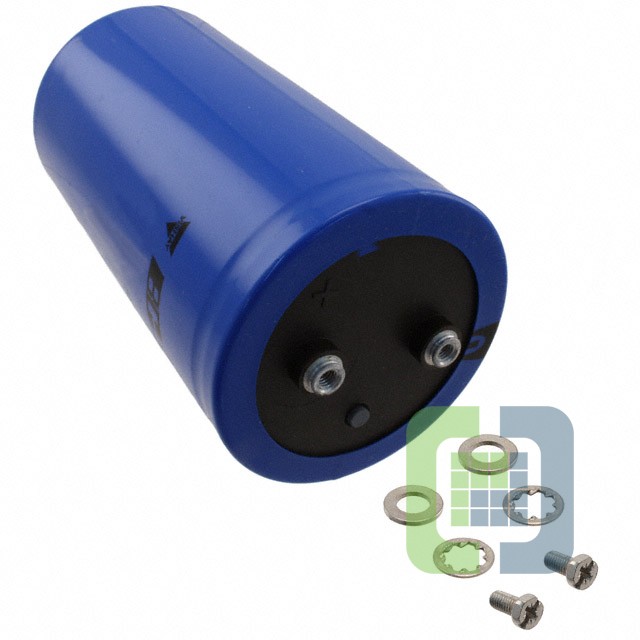

MAL210213682E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 6800UF 20% 250V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL210213682E3 Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$64.3545
- 60$61.744
Quote It
Technical Details
- Series:102 PHR-ST
- Package:Bulk
- Part Status:Active
- Capacitance:6800 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):21mOhm
- Lifetime @ Temp.:10000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:27.15 A @ 10 kHz
- Impedance:14 mOhms
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:2.992" Dia (76.00mm)
- Height - Seated (Max):4.205" (106.80mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
