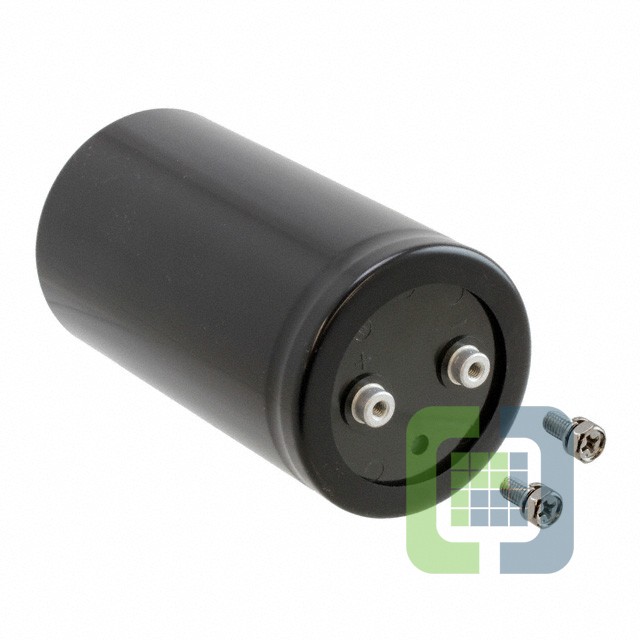

200LSW12000MEFC77X141
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 12000UF 20% 200V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet 200LSW12000MEFC77X141 Datasheet
-
ECAD Model
- Share
In Stock: 178
Can ship immediately
Pricing:
- 1$66.39
- 10$66.39
Quote It
Technical Details
- Series:LSW
- Package:Bulk
- Part Status:Active
- Capacitance:12000 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-25°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:10.5 A @ 120 Hz
- Ripple Current @ High Frequency:12.39 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.236" (31.40mm)
- Size / Dimension:3.032" Dia (77.00mm)
- Height - Seated (Max):5.630" (143.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
