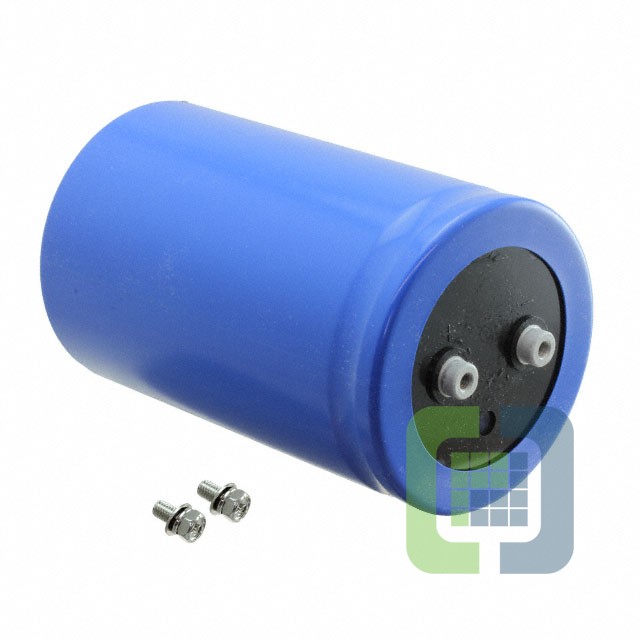

E36D501LGN682MFE3M
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 6800UF 20% 500V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet E36D501LGN682MFE3M Datasheet
-
ECAD Model
- Share
In Stock: 196
Can ship immediately
Pricing:
- 1$71.57
- 10$67.095
- 100$58.149
Quote It
Technical Details
- Series:U36D
- Package:Bulk
- Part Status:Obsolete
- Capacitance:6800 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):76mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:8.35 A @ 120 Hz
- Ripple Current @ High Frequency:11.69 A @ 3 kHz
- Impedance:-
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.500" Dia (88.90mm)
- Height - Seated (Max):5.625" (142.88mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
