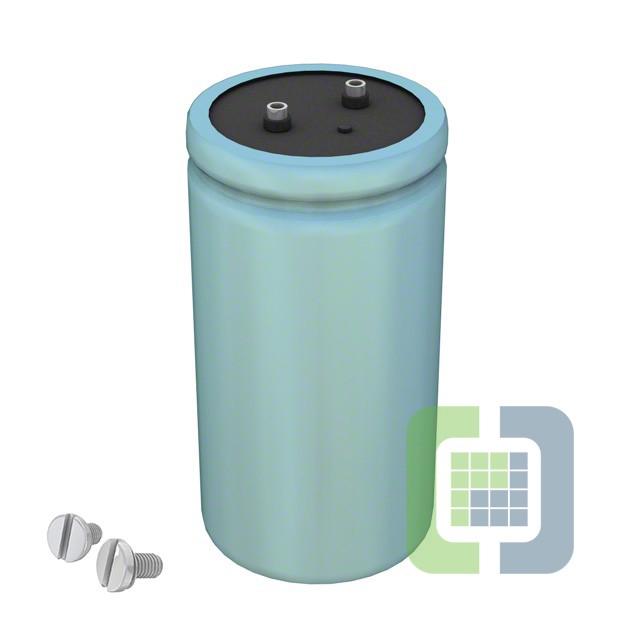

CG1252U075X5L
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 12500UF 75V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet CG1252U075X5L Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
- 1$72.639
- 20$66.843
Quote It
Technical Details
- Series:CG
- Package:Bulk
- Part Status:Active
- Capacitance:12500 µF
- Tolerance:-10%, +75%
- Voltage - Rated:75 V
- ESR (Equivalent Series Resistance):9mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:21.8 A @ 120 Hz
- Ripple Current @ High Frequency:25.07 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:3.000" Dia (76.20mm)
- Height - Seated (Max):5.625" (142.88mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
