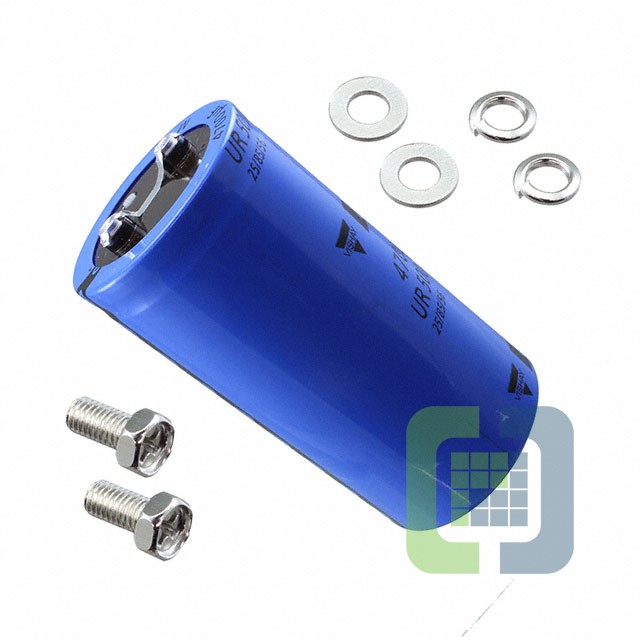

MAL250079272E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2700UF 500V 5000H
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 127
Can ship immediately
Pricing:
- 1$78.435
Quote It
Technical Details
- Series:500 PGP-ST
- Package:Box
- Part Status:Active
- Capacitance:2700 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):80mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.64 A @ 100 Hz
- Ripple Current @ High Frequency:14.46 A @ 10 kHz
- Impedance:73 mOhms
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.008" Dia (76.40mm)
- Height - Seated (Max):4.205" (106.80mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
