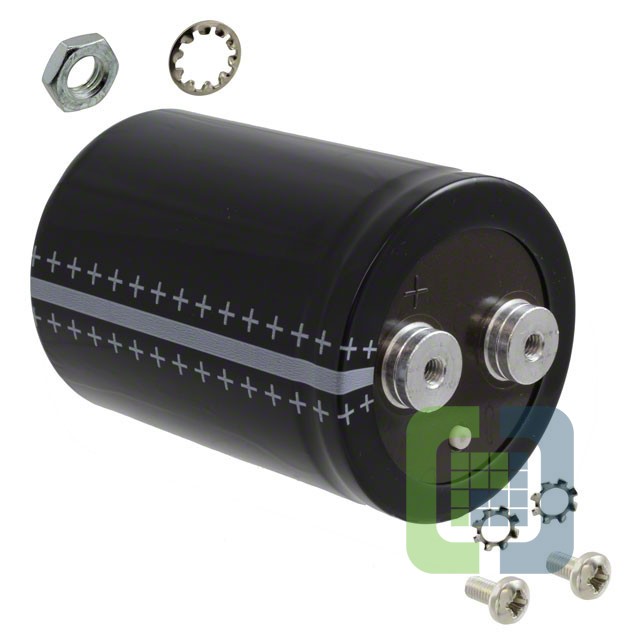

B43584A9398M3
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3900UF 20% 400V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43584A9398M3 Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$82.48219
- 32$82.48219
Quote It
Technical Details
- Series:B43584
- Package:Bulk
- Part Status:Active
- Capacitance:3900 µF
- Tolerance:±20%
- Voltage - Rated:400 V
- ESR (Equivalent Series Resistance):29mOhm @ 100Hz
- Lifetime @ Temp.:15000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:11.8 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:35 mOhms
- Lead Spacing:1.248" (31.70mm)
- Size / Dimension:3.028" Dia (76.90mm)
- Height - Seated (Max):4.201" (106.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis, Stud Mount
- Package / Case:Radial, Can - Screw Terminals
