MAL210445332E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant

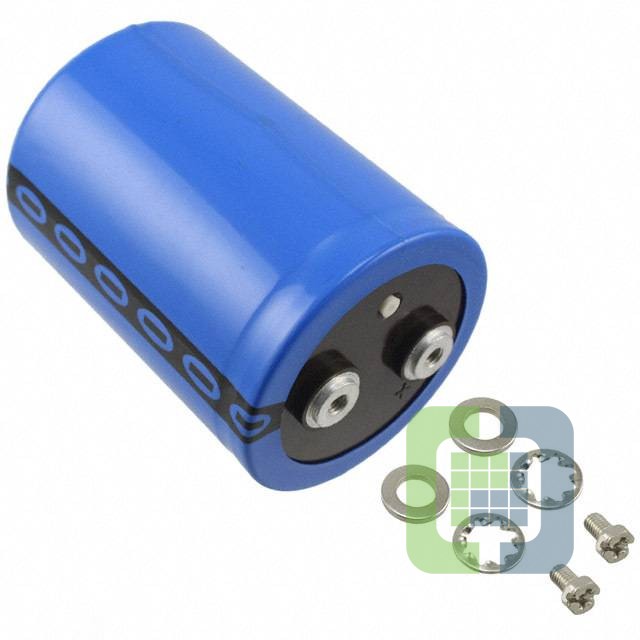

- DescriptionCAP ALUM 3300UF 20% 350V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL210445332E3 Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$82.782
- 60$79.424
Quote It
Technical Details
- Series:104 PHL-ST
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):42mOhm
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:-
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:-
- Ripple Current @ High Frequency:16.8 A @ 10 kHz
- Impedance:26 mOhms
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:3.008" Dia (76.40mm)
- Height - Seated (Max):4.378" (111.20mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
