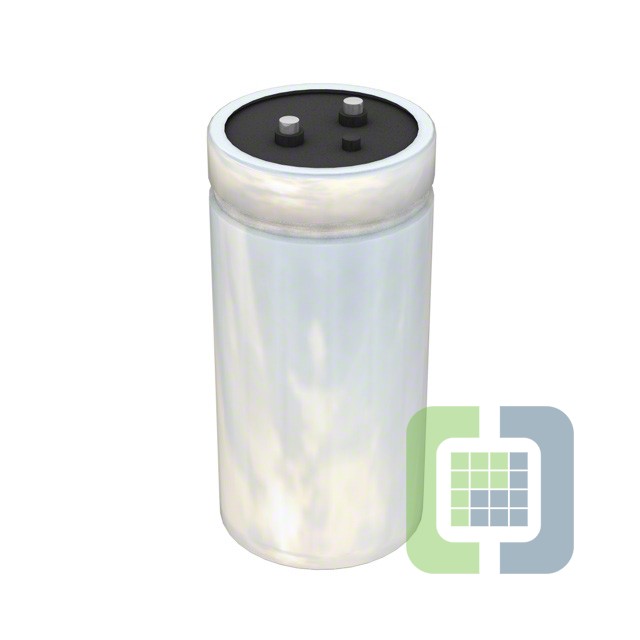

HES142G350W5C
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1400UF 350V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet HES142G350W5C Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
- 1$83.2924
- 50$83.2924
Quote It
Technical Details
- Series:HES
- Package:Bulk
- Part Status:Active
- Capacitance:1400 µF
- Tolerance:0%, +50%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):80mOhm @ 120Hz
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:6.2 A @ 120 Hz
- Ripple Current @ High Frequency:7.626 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:2.500" Dia (63.50mm)
- Height - Seated (Max):5.125" (130.18mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
