MAL250019332E3
Vishay BC Components/Beyshlag/Draloric
- Lifecycle status Active
- RoHS RoHS Compliant

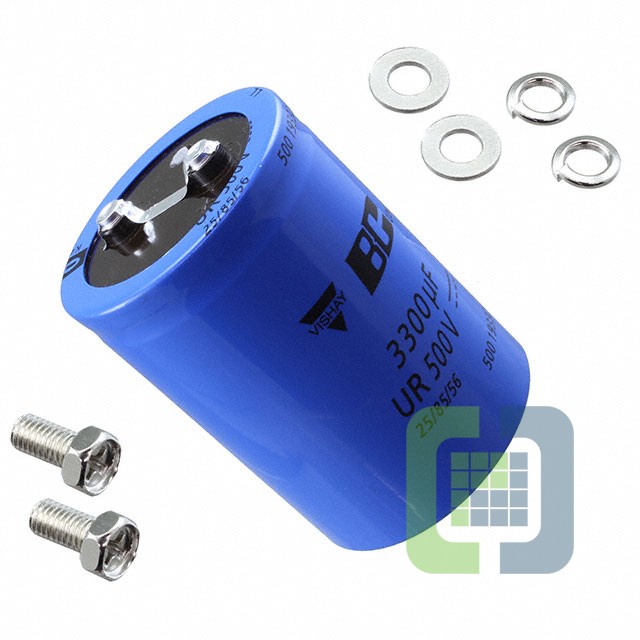

- DescriptionCAP ALUM 3300UF 20% 500V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet MAL250019332E3 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
- 1$86.541
- 10$82.06474
- 100$81.16949
Quote It
Technical Details
- Series:500 PGP-ST
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):65mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:10.7 A @ 100 Hz
- Ripple Current @ High Frequency:16.05 A @ 10 kHz
- Impedance:60 mOhms
- Lead Spacing:1.252" (31.80mm)
- Size / Dimension:2.992" Dia (76.00mm)
- Height - Seated (Max):4.173" (106.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
