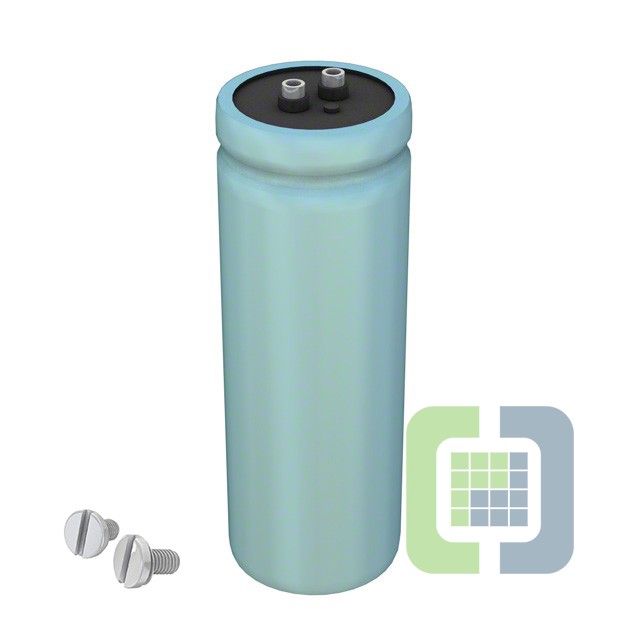

CGH532T250V5L
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 5300UF 250V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet CGH532T250V5L Datasheet
-
ECAD Model
- Share
In Stock: 144
Can ship immediately
Pricing:
- 1$89.00476
- 42$86.83595
Quote It
Technical Details
- Series:CGH
- Package:Bulk
- Part Status:Active
- Capacitance:5300 µF
- Tolerance:-10%, +50%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):20.6mOhm @ 120Hz
- Lifetime @ Temp.:1000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:11 A @ 120 Hz
- Ripple Current @ High Frequency:13.53 A @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:2.000" Dia (50.80mm)
- Height - Seated (Max):5.625" (142.88mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
