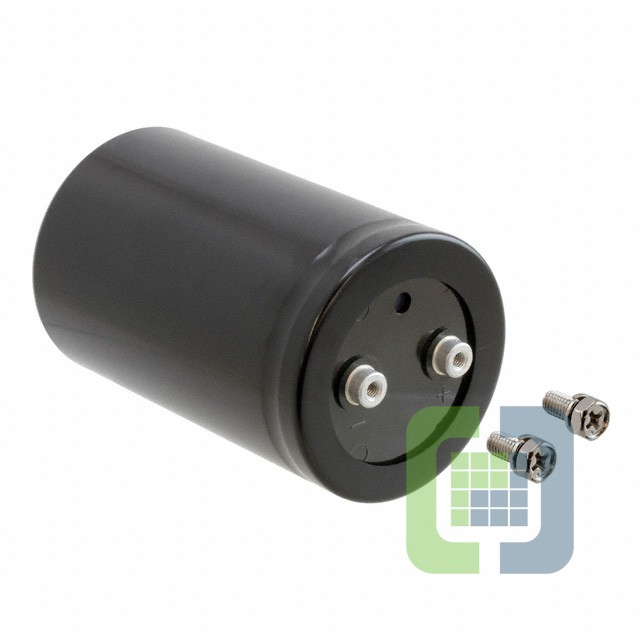

25LSW390000MEFC90X141
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 390000UF 20% 25V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet 25LSW390000MEFC90X141 Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
- 1$91.08
- 10$91.08
Quote It
Technical Details
- Series:LSW
- Package:Bulk
- Part Status:Active
- Capacitance:390000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:27.2 A @ 120 Hz
- Ripple Current @ High Frequency:29.376 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.236" (31.40mm)
- Size / Dimension:3.543" Dia (90.00mm)
- Height - Seated (Max):5.630" (143.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
