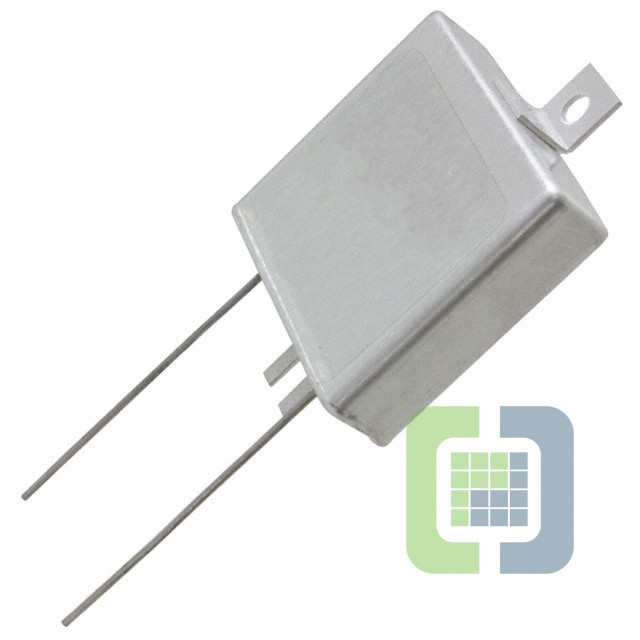

MLP173M010EK1A
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 17000UF 20% 10V FLATPCK
- CategoryAluminum Electrolytic Capacitors
- Datasheet MLP173M010EK1A Datasheet
-
ECAD Model
- Share
In Stock: 146
Can ship immediately
Pricing:
- 1$92.356
- 10$80.88011
Quote It
Technical Details
- Series:MLP
- Package:Bulk
- Part Status:Active
- Capacitance:17000 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):77mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-55°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:4.2 A @ 120 Hz
- Ripple Current @ High Frequency:4.5 A @ 20 kHz
- Impedance:-
- Lead Spacing:1.000" (25.40mm)
- Size / Dimension:1.500" L x 1.750" W (38.10mm x 44.45mm)
- Height - Seated (Max):0.500" (12.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:FlatPack, Tabbed
