B41456B5470M003
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant

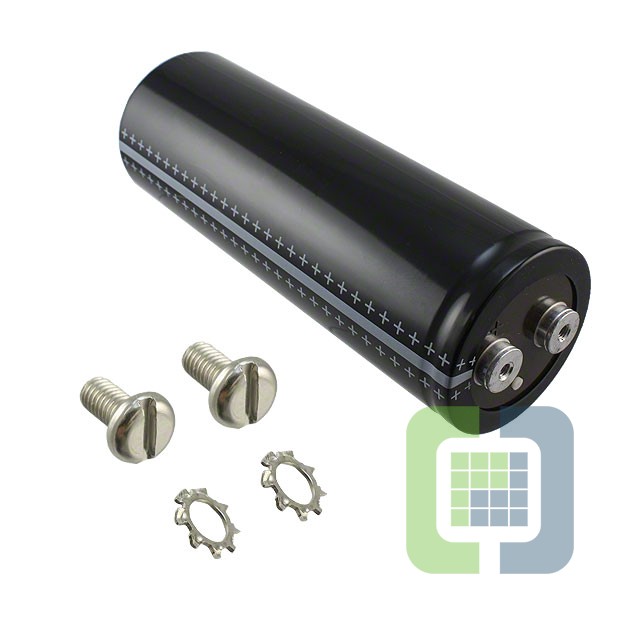

- DescriptionCAP ALUM 470000UF 20% 25V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B41456B5470M003 Datasheet
-
ECAD Model
- Share
In Stock: 180
Can ship immediately
Pricing:
- 1$93.00375
- 24$93.00375
Quote It
Technical Details
- Series:B41456
- Package:Bulk
- Part Status:Active
- Capacitance:470000 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):4mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:31 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:4.8 mOhms
- Lead Spacing:1.248" (31.70mm)
- Size / Dimension:3.028" Dia (76.90mm)
- Height - Seated (Max):8.689" (220.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
