500LSU4700MNB77X151
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant

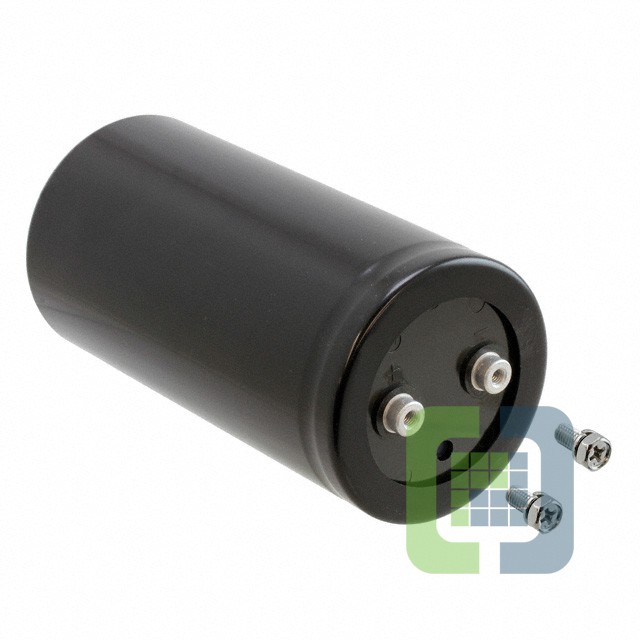

- DescriptionCAP ALUM 4700UF 20% 500V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet 500LSU4700MNB77X151 Datasheet
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
- 1$98.9975
- 10$93.88067
- 100$87.05259
Quote It
Technical Details
- Series:LSU
- Package:Bulk
- Part Status:Active
- Capacitance:4700 µF
- Tolerance:±20%
- Voltage - Rated:500 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:14.8 A @ 120 Hz
- Ripple Current @ High Frequency:19.24 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.236" (31.40mm)
- Size / Dimension:3.032" Dia (77.00mm)
- Height - Seated (Max):6.063" (154.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
