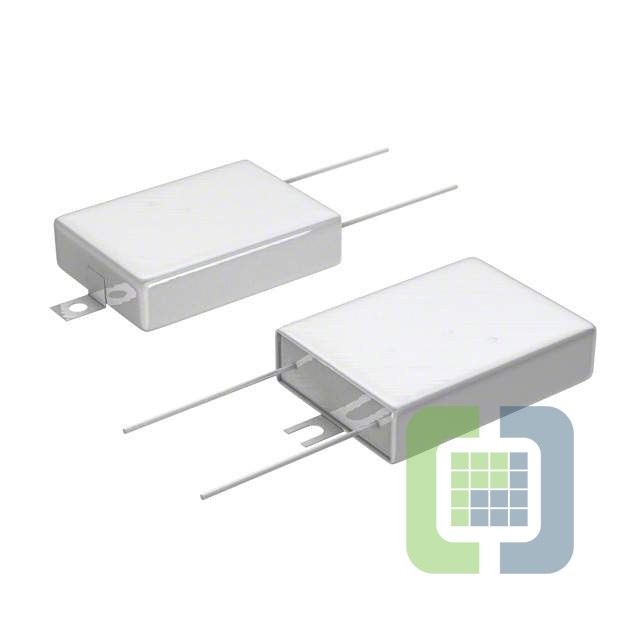

MLP601M200EA1A
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 600UF 20% 200V FLATPACK
- CategoryAluminum Electrolytic Capacitors
- Datasheet MLP601M200EA1A Datasheet
-
ECAD Model
- Share
In Stock: 149
Can ship immediately
Pricing:
- 1$99.808
- 10$87.40061
Quote It
Technical Details
- Series:MLP
- Package:Bulk
- Part Status:Active
- Capacitance:600 µF
- Tolerance:±20%
- Voltage - Rated:200 V
- ESR (Equivalent Series Resistance):261mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-55°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:2.6 A @ 120 Hz
- Ripple Current @ High Frequency:3.2 A @ 20 kHz
- Impedance:-
- Lead Spacing:1.000" (25.40mm)
- Size / Dimension:2.000" L x 1.750" W (50.80mm x 44.45mm)
- Height - Seated (Max):0.500" (12.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:FlatPack, Tabbed
