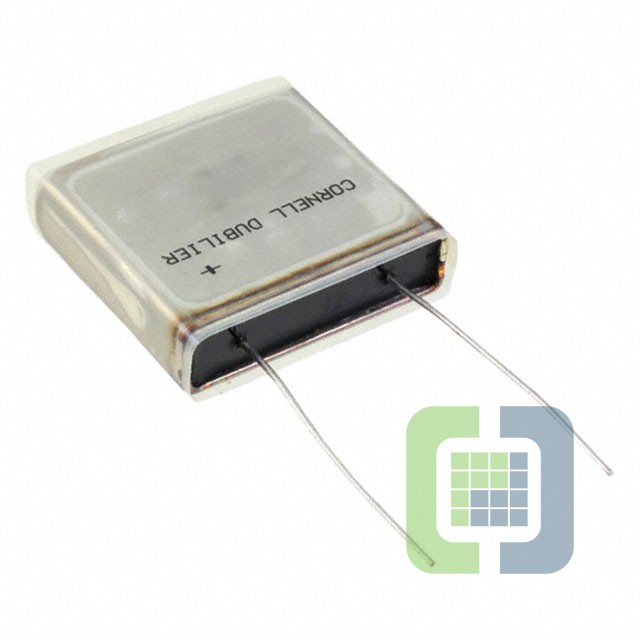

MLP842M035EA1C

Technical Details

• Series:MLP
• Package:Bulk
• Part Status:Active
• Capacitance:8400 µF
• Tolerance:±20%
• Voltage - Rated:35 V
• ESR (Equivalent Series Resistance):59mOhm @ 120Hz
• Lifetime @ Temp.:2000 Hrs @ 85°C
• Operating Temperature:-55°C ~ 85°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:5.4 A @ 120 Hz
• Ripple Current @ High Frequency:6.1 A @ 20 kHz
• Impedance:-
• Lead Spacing:1.000" (25.40mm)
• Size / Dimension:2.000" L x 1.750" W (50.80mm x 44.45mm)
• Height - Seated (Max):0.500" (12.70mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:FlatPack
