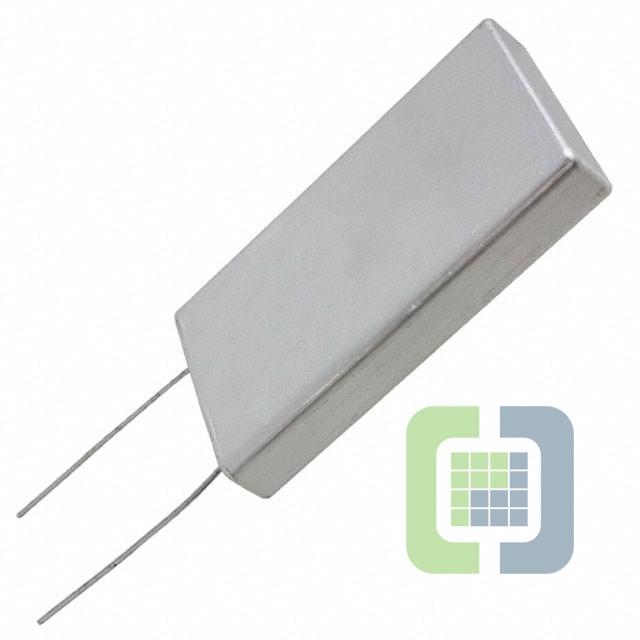

MLP562M063EB0C

Technical Details

• Series:MLP
• Package:Bulk
• Part Status:Active
• Capacitance:5600 µF
• Tolerance:±20%
• Voltage - Rated:63 V
• ESR (Equivalent Series Resistance):36mOhm @ 120Hz
• Lifetime @ Temp.:2000 Hrs @ 85°C
• Operating Temperature:-55°C ~ 85°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:8.3 A @ 120 Hz
• Ripple Current @ High Frequency:9.3 A @ 20 kHz
• Impedance:-
• Lead Spacing:1.000" (25.40mm)
• Size / Dimension:3.000" L x 1.750" W (76.20mm x 44.45mm)
• Height - Seated (Max):0.500" (12.70mm)
• Surface Mount Land Size:-
• Mounting Type:Through Hole
• Package / Case:FlatPack
