LNK2W562MSEG
Nichicon
- Lifecycle status Active
- RoHS RoHS Compliant

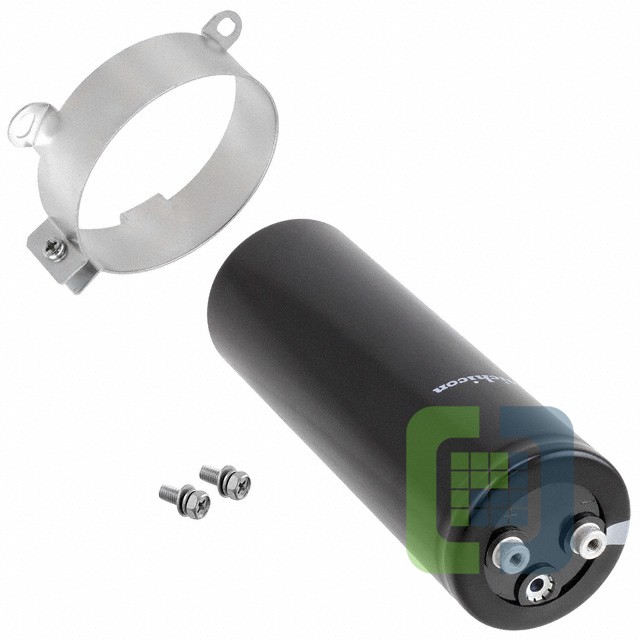

- DescriptionCAP ALUM 5600UF 20% 450V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet LNK2W562MSEG Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$120.118
- 5$114.398
Quote It
Technical Details
- Series:LNK
- Package:Bulk
- Part Status:Active
- Capacitance:5600 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:18.7 A @ 120 Hz
- Ripple Current @ High Frequency:26.18 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.126" (28.60mm)
- Size / Dimension:2.500" Dia (63.50mm)
- Height - Seated (Max):7.480" (190.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
