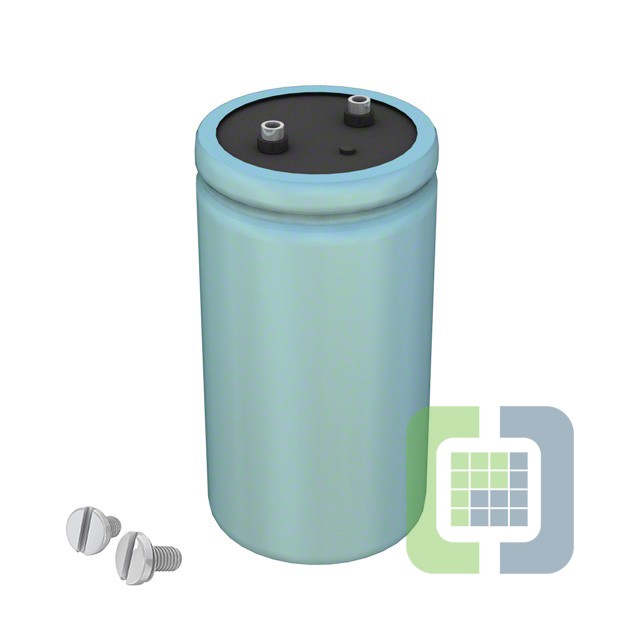

CGH412T350W4L

Technical Details

• Series:CGH
• Package:Bulk
• Part Status:Active
• Capacitance:4100 µF
• Tolerance:-10%, +50%
• Voltage - Rated:350 V
• ESR (Equivalent Series Resistance):38.6mOhm @ 120Hz
• Lifetime @ Temp.:1000 Hrs @ 85°C
• Operating Temperature:-40°C ~ 85°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:8.6 A @ 120 Hz
• Ripple Current @ High Frequency:10.578 A @ 10 kHz
• Impedance:-
• Lead Spacing:-
• Size / Dimension:2.500" Dia (63.50mm)
• Height - Seated (Max):4.625" (117.48mm)
• Surface Mount Land Size:-
• Mounting Type:Chassis Mount
• Package / Case:Radial, Can - Screw Terminals
