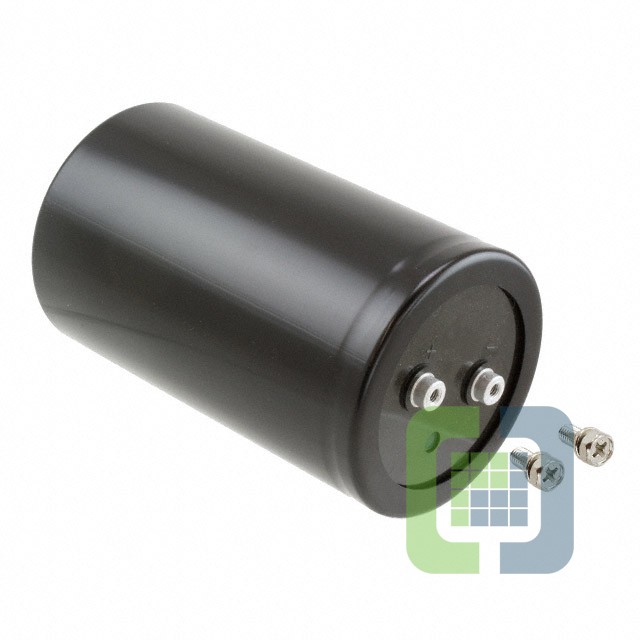

580LSU3300MNB77X151
Rubycon
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3300UF 20% 580V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet 580LSU3300MNB77X151 Datasheet
-
ECAD Model
- Share
In Stock: 136
Can ship immediately
Pricing:
- 1$122.9975
- 10$116.63657
Quote It
Technical Details
- Series:LSU
- Package:Bulk
- Part Status:Active
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:580 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:3000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.9 A @ 120 Hz
- Ripple Current @ High Frequency:12.87 A @ 10 kHz
- Impedance:-
- Lead Spacing:1.236" (31.40mm)
- Size / Dimension:3.032" Dia (77.00mm)
- Height - Seated (Max):6.063" (154.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
