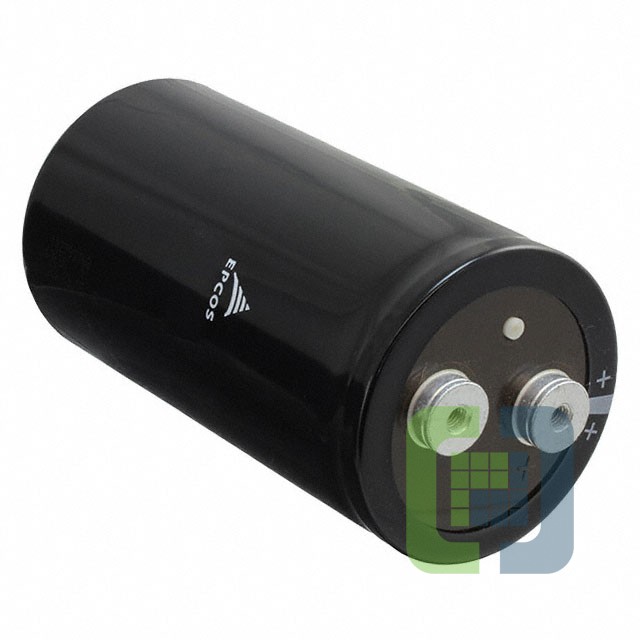

B43456A4828M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 8200UF 20% 350V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet B43456A4828M000 Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$125.20156
- 32$125.20156
Quote It
Technical Details
- Series:B43456
- Package:Bulk
- Part Status:Not For New Designs
- Capacitance:8200 µF
- Tolerance:±20%
- Voltage - Rated:350 V
- ESR (Equivalent Series Resistance):11mOhm @ 100Hz
- Lifetime @ Temp.:12000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:20 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:12 mOhms
- Lead Spacing:1.248" (31.70mm)
- Size / Dimension:3.028" Dia (76.90mm)
- Height - Seated (Max):5.677" (144.20mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
