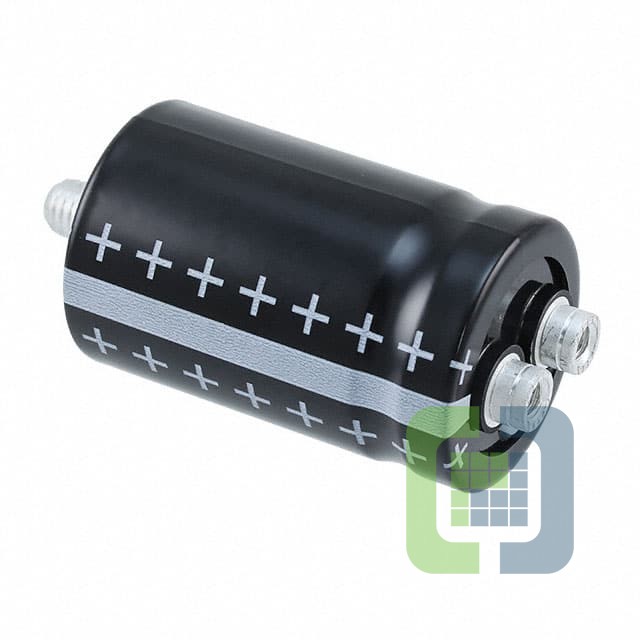

B43721A5109M000
TDK EPCOS
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionALUM ELECT 450V 10000UF SCREW TE
- CategoryAluminum Electrolytic Capacitors
-
ECAD Model
- Share
In Stock: 169
Can ship immediately
Pricing:
- 1$128.64417
Quote It
Technical Details
- Series:B43721
- Package:Bulk
- Part Status:Active
- Capacitance:10000 µF
- Tolerance:±20%
- Voltage - Rated:450 V
- ESR (Equivalent Series Resistance):13mOhm @ 100Hz
- Lifetime @ Temp.:5000 Hrs @ 85°C
- Operating Temperature:-25°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:21 A @ 100 Hz
- Ripple Current @ High Frequency:-
- Impedance:22 mOhms
- Lead Spacing:1.248" (31.70mm)
- Size / Dimension:3.028" Dia (76.90mm)
- Height - Seated (Max):7.547" (191.70mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
