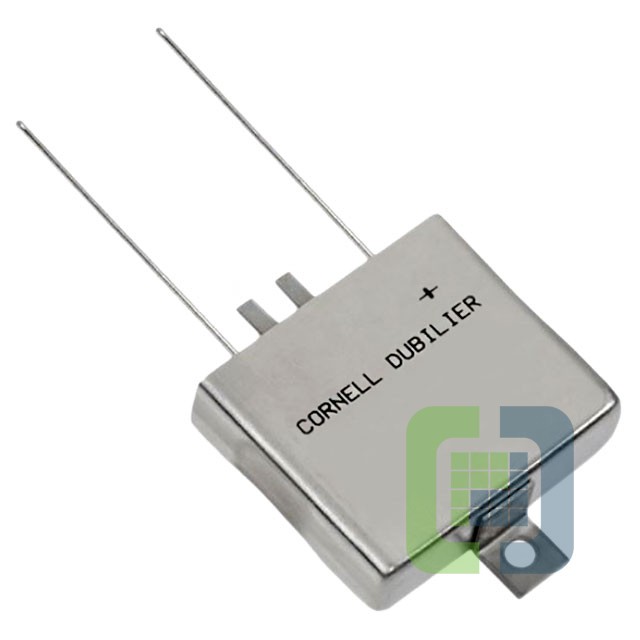

HVMLS442M040EK0A

Technical Details

• Series:MLS
• Package:Bulk
• Part Status:Active
• Capacitance:4400 µF
• Tolerance:±20%
• Voltage - Rated:40 V
• ESR (Equivalent Series Resistance):97mOhm @ 120Hz
• Lifetime @ Temp.:10000 Hrs @ 85°C
• Operating Temperature:-55°C ~ 125°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:10.3 A @ 120 Hz
• Ripple Current @ High Frequency:12.1 A @ 20 kHz
• Impedance:-
• Lead Spacing:1.000" (25.40mm)
• Size / Dimension:1.500" L x 1.750" W (38.10mm x 44.45mm)
• Height - Seated (Max):0.500" (12.70mm)
• Surface Mount Land Size:-
• Mounting Type:Chassis Mount
• Package / Case:FlatPack, Tabbed
