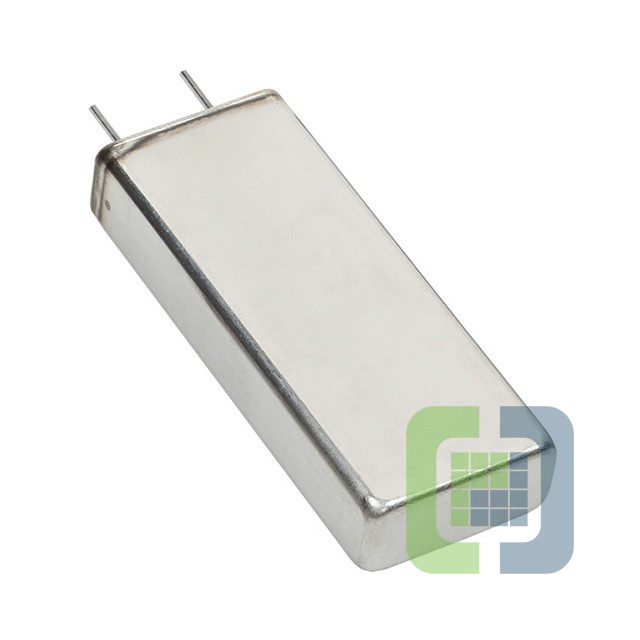

MLSG252M050JA0C
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 2500UF 20% 50V FLATPACK
- CategoryAluminum Electrolytic Capacitors
- Datasheet MLSG252M050JA0C Datasheet
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$163.106
- 10$131.46732
Quote It
Technical Details
- Series:MLSG Slimpack
- Package:Bulk
- Part Status:Active
- Capacitance:2500 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):73mOhm @ 120Hz
- Lifetime @ Temp.:5000 Hrs @ 125°C
- Operating Temperature:-55°C ~ 125°C
- Polarization:Bi-Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:9.5 A @ 120 Hz
- Ripple Current @ High Frequency:9.7 A @ 20 kHz
- Impedance:-
- Lead Spacing:0.500" (12.70mm)
- Size / Dimension:2.000" L x 1.000" W (50.80mm x 25.40mm)
- Height - Seated (Max):0.500" (12.70mm)
- Surface Mount Land Size:-
- Mounting Type:Through Hole
- Package / Case:FlatPack
