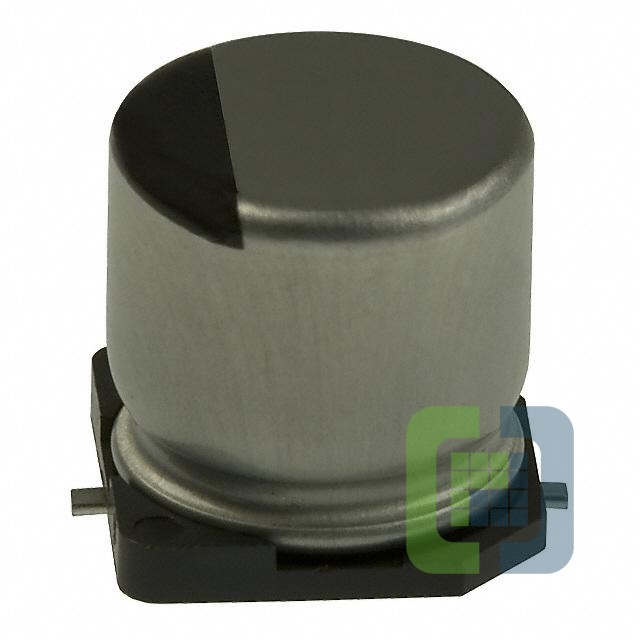

EEE-HA1HR47AR
Panasonic
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 0.47UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet EEE-HA1HR47AR Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HA
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Capacitance:0.47 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):-
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive
- Ripple Current @ Low Frequency:5 mA @ 120 Hz
- Ripple Current @ High Frequency:8.5 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.157" Dia (4.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.169" L x 0.169" W (4.30mm x 4.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
