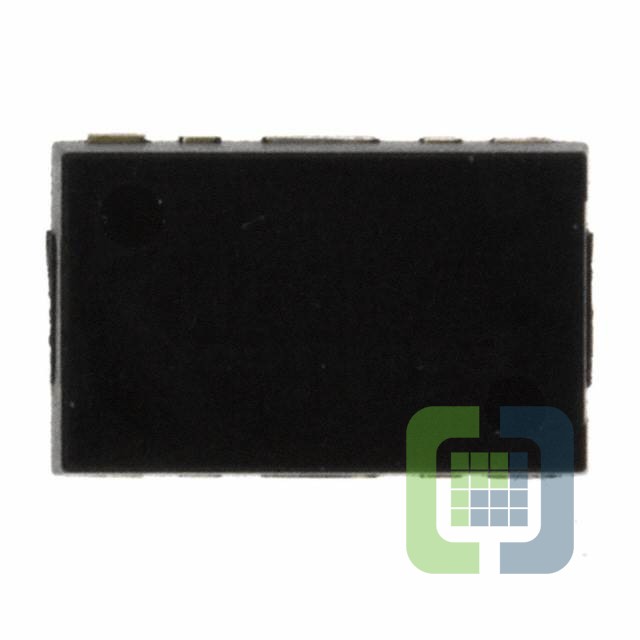

F110G107MDL

Technical Details

• Series:F11
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Capacitance:100 µF
• Tolerance:±20%
• Voltage - Rated:4 V
• ESR (Equivalent Series Resistance):20mOhm @ 100kHz
• Lifetime @ Temp.:5000 Hrs @ 105°C
• Operating Temperature:-55°C ~ 105°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:-
• Ripple Current @ High Frequency:3.5 A @ 100 kHz
• Impedance:-
• Lead Spacing:-
• Size / Dimension:0.335" L x 0.209" W (8.50mm x 5.30mm)
• Height - Seated (Max):0.079" (2.00mm)
• Surface Mount Land Size:0.335" L x 0.209" W (8.50mm x 5.30mm)
• Mounting Type:Surface Mount
• Package / Case:Nonstandard SMD
