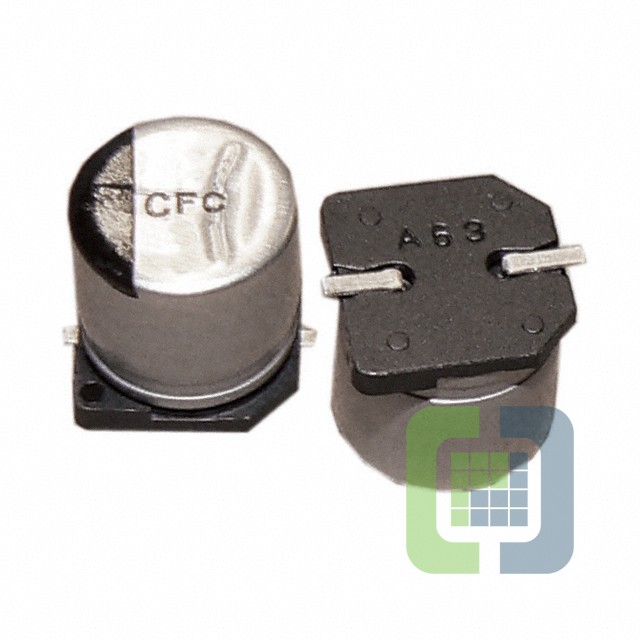

AFC226M16C12B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22UF 20% 16V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AFC226M16C12B-F Datasheet
-
ECAD Model
- Share
In Stock: 137
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AFC
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Capacitance:22 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):12.1Ohm @ 120Hz
- Lifetime @ Temp.:1000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:71.25 mA @ 120 Hz
- Ripple Current @ High Frequency:95 mA @ 100 kHz
- Impedance:1.8 Ohms
- Lead Spacing:-
- Size / Dimension:0.197" Dia (5.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.209" L x 0.209" W (5.30mm x 5.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
