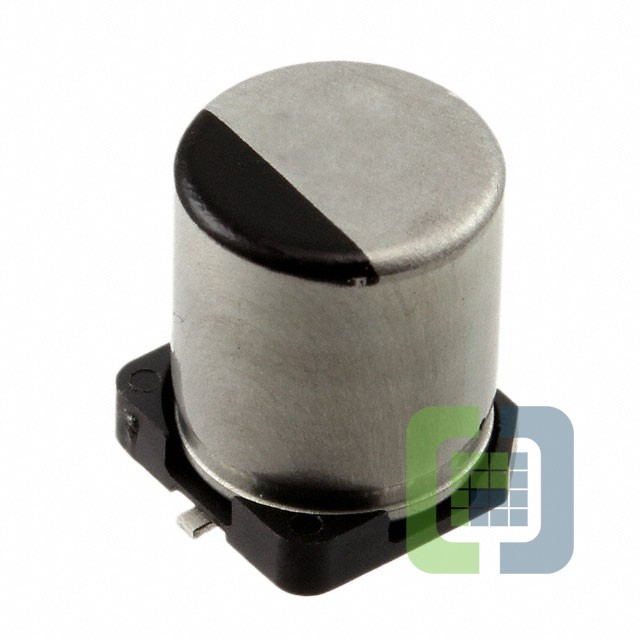

AFK227M16X16B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 220UF 20% 16V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AFK227M16X16B-F Datasheet
-
ECAD Model
- Share
In Stock: 198
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AFK
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Capacitance:220 µF
- Tolerance:±20%
- Voltage - Rated:16 V
- ESR (Equivalent Series Resistance):340mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:210 mA @ 120 Hz
- Ripple Current @ High Frequency:300 mA @ 100 kHz
- Impedance:340 mOhms
- Lead Spacing:-
- Size / Dimension:0.248" Dia (6.30mm)
- Height - Seated (Max):0.323" (8.20mm)
- Surface Mount Land Size:0.260" L x 0.307" W (6.60mm x 7.80mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
