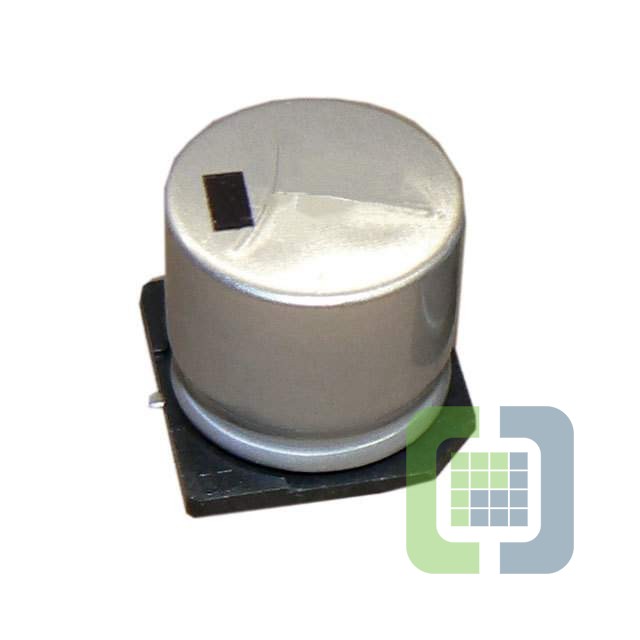

AFK336M63F24B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 63V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AFK336M63F24B-F Datasheet
-
ECAD Model
- Share
In Stock: 164
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AFK
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):650mOhm @ 100kHz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:187.5 mA @ 120 Hz
- Ripple Current @ High Frequency:250 mA @ 100 kHz
- Impedance:650 mOhms
- Lead Spacing:-
- Size / Dimension:0.315" Dia (8.00mm)
- Height - Seated (Max):0.413" (10.50mm)
- Surface Mount Land Size:0.327" L x 0.394" W (8.30mm x 10.00mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
