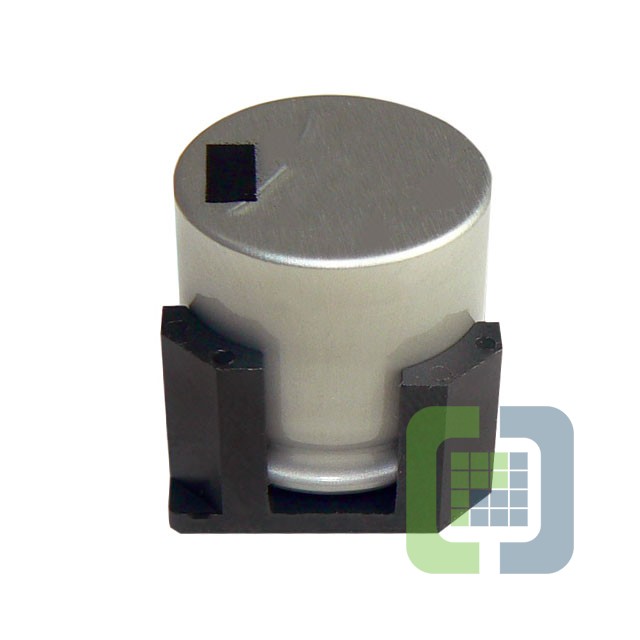

AFK338M25R44B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 3300UF 20% 25V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AFK338M25R44B-F Datasheet
-
ECAD Model
- Share
In Stock: 133
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AFK
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Capacitance:3300 µF
- Tolerance:±20%
- Voltage - Rated:25 V
- ESR (Equivalent Series Resistance):33mOhm @ 100kHz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-55°C ~ 105°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:1.545 A @ 120 Hz
- Ripple Current @ High Frequency:2.06 A @ 100 kHz
- Impedance:33 mOhms
- Lead Spacing:-
- Size / Dimension:0.709" Dia (18.00mm)
- Height - Seated (Max):0.669" (17.00mm)
- Surface Mount Land Size:0.748" L x 0.827" W (19.00mm x 21.00mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
