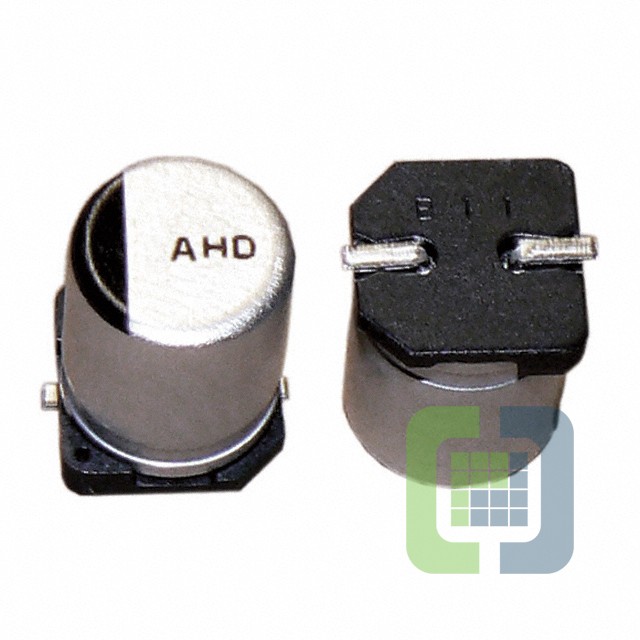

AHD336M63G24B
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 33UF 20% 63V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AHD336M63G24B Datasheet
-
ECAD Model
- Share
In Stock: 135
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AHD
- Package:Bulk
- Part Status:Obsolete
- Capacitance:33 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):9Ohm @ 120Hz
- Lifetime @ Temp.:5000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:80 mA @ 120 Hz
- Ripple Current @ High Frequency:136 mA @ 10 kHz
- Impedance:800 mOhms
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.402" (10.20mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
