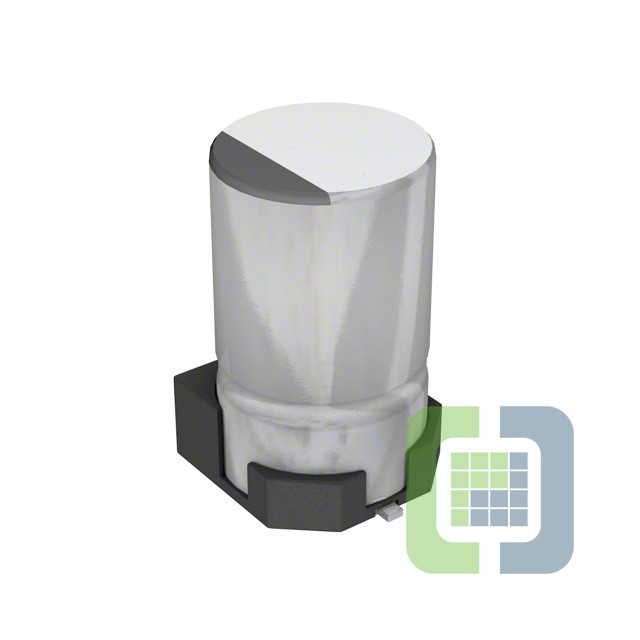

AVS105M50A12B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 1UF 20% 50V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AVS105M50A12B-F Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AVS
- Package:Bulk
- Part Status:Obsolete
- Capacitance:1 µF
- Tolerance:±20%
- Voltage - Rated:50 V
- ESR (Equivalent Series Resistance):232Ohm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:8 mA @ 120 Hz
- Ripple Current @ High Frequency:13.6 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.118" Dia (3.00mm)
- Height - Seated (Max):0.213" (5.40mm)
- Surface Mount Land Size:0.130" L x 0.130" W (3.30mm x 3.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
