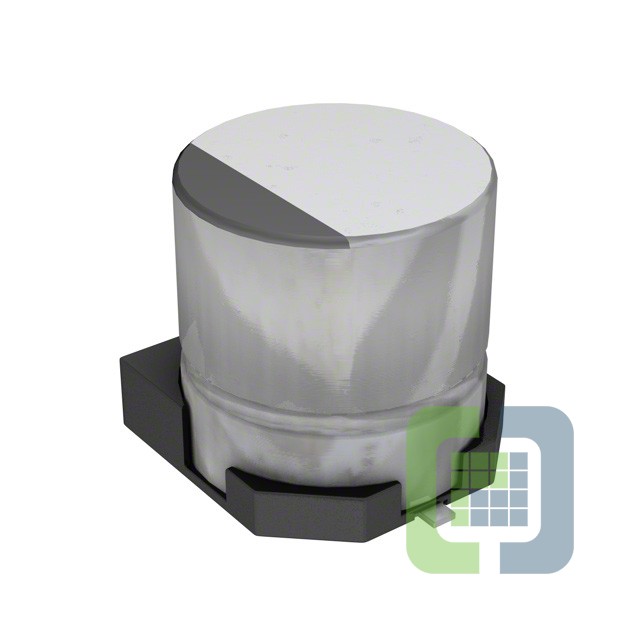

AVS477M10G24B-F
Cornell Dubilier Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 470UF 20% 10V SMD
- CategoryAluminum Electrolytic Capacitors
- Datasheet AVS477M10G24B-F Datasheet
-
ECAD Model
- Share
In Stock: 108
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:AVS
- Package:Bulk
- Part Status:Discontinued at Digi-Key
- Capacitance:470 µF
- Tolerance:±20%
- Voltage - Rated:10 V
- ESR (Equivalent Series Resistance):900mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:AEC-Q200
- Applications:Automotive, Bypass, Decoupling
- Ripple Current @ Low Frequency:400 mA @ 120 Hz
- Ripple Current @ High Frequency:680 mA @ 10 kHz
- Impedance:-
- Lead Spacing:-
- Size / Dimension:0.394" Dia (10.00mm)
- Height - Seated (Max):0.402" (10.20mm)
- Surface Mount Land Size:0.406" L x 0.406" W (10.30mm x 10.30mm)
- Mounting Type:Surface Mount
- Package / Case:Radial, Can - SMD
