E32D251CJN562MC92M
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant

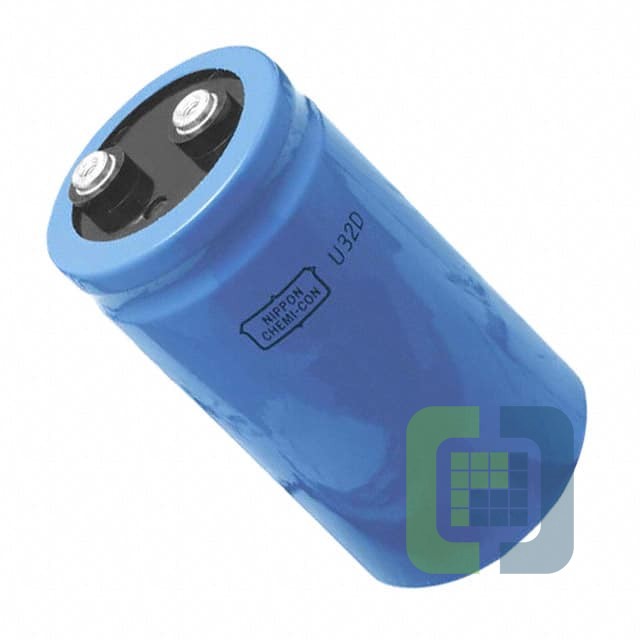

- DescriptionCAP ALUM 5600UF 20% 250V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet E32D251CJN562MC92M Datasheet
-
ECAD Model
- Share
In Stock: 163
Can ship immediately
Pricing:
- 1$29.63
- 10$28.06555
- 100$22.60836
- 500$20.26957
Quote It
Technical Details
- Series:U32D
- Package:Bulk
- Part Status:Obsolete
- Capacitance:5600 µF
- Tolerance:±20%
- Voltage - Rated:250 V
- ESR (Equivalent Series Resistance):40mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 105°C
- Operating Temperature:-40°C ~ 105°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:8.4 A @ 120 Hz
- Ripple Current @ High Frequency:11.172 A @ 50 kHz
- Impedance:-
- Lead Spacing:0.875" (22.22mm)
- Size / Dimension:2.000" Dia (50.80mm)
- Height - Seated (Max):3.661" (93.00mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
