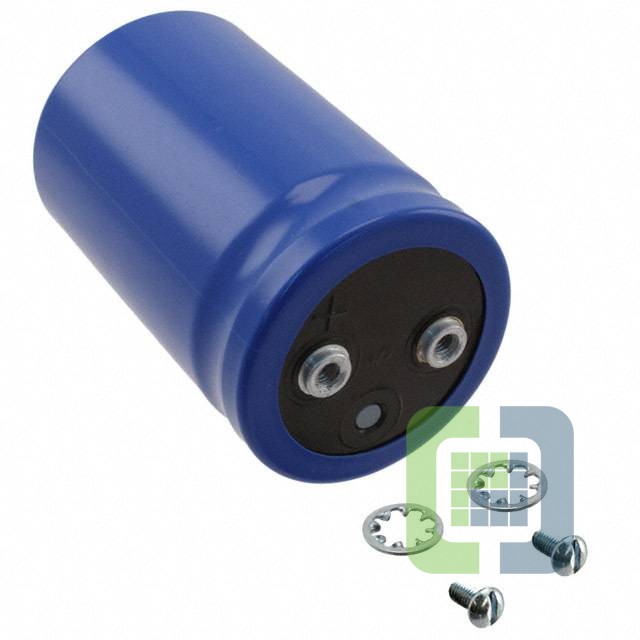

E36D630HPN223MC67M
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 22000UF 20% 63V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet E36D630HPN223MC67M Datasheet
-
ECAD Model
- Share
In Stock: 183
Can ship immediately
Pricing:
- 1$16.06
- 10$15.257
- 100$12.045
- 500$10.6799
- 1,000$10.0375
Quote It
Technical Details
- Series:U36D
- Package:Bulk
- Part Status:Obsolete
- Capacitance:22000 µF
- Tolerance:±20%
- Voltage - Rated:63 V
- ESR (Equivalent Series Resistance):13.8mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:7.91 A @ 120 Hz
- Ripple Current @ High Frequency:11.074 A @ 3 kHz
- Impedance:-
- Lead Spacing:0.875" (22.22mm)
- Size / Dimension:2.000" Dia (50.80mm)
- Height - Seated (Max):2.625" (66.68mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
