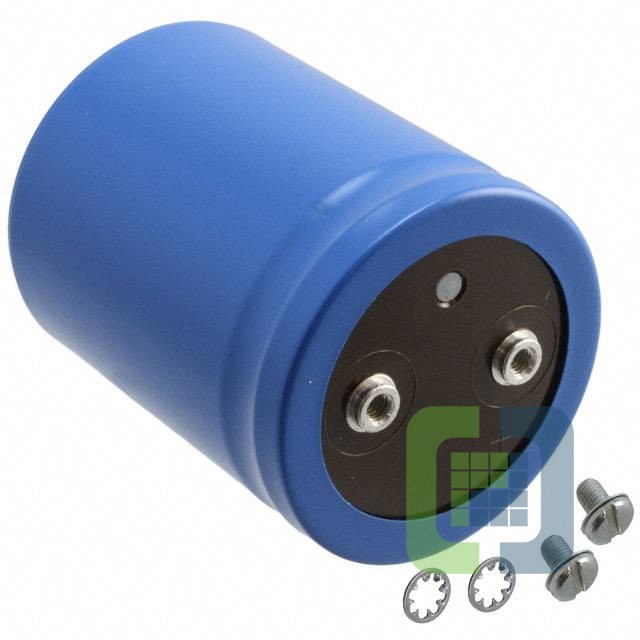

E36D161HPN153MDA5M
United Chemi-Con
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCAP ALUM 15000UF 20% 160V SCREW
- CategoryAluminum Electrolytic Capacitors
- Datasheet E36D161HPN153MDA5M Datasheet
-
ECAD Model
- Share
In Stock: 107
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:U36D
- Package:Bulk
- Part Status:Obsolete
- Capacitance:15000 µF
- Tolerance:±20%
- Voltage - Rated:160 V
- ESR (Equivalent Series Resistance):14.9mOhm @ 120Hz
- Lifetime @ Temp.:2000 Hrs @ 85°C
- Operating Temperature:-40°C ~ 85°C
- Polarization:Polar
- Ratings:-
- Applications:General Purpose
- Ripple Current @ Low Frequency:15.52 A @ 120 Hz
- Ripple Current @ High Frequency:21.728 A @ 3 kHz
- Impedance:-
- Lead Spacing:1.126" (28.60mm)
- Size / Dimension:2.500" Dia (63.50mm)
- Height - Seated (Max):4.125" (104.78mm)
- Surface Mount Land Size:-
- Mounting Type:Chassis Mount
- Package / Case:Radial, Can - Screw Terminals
