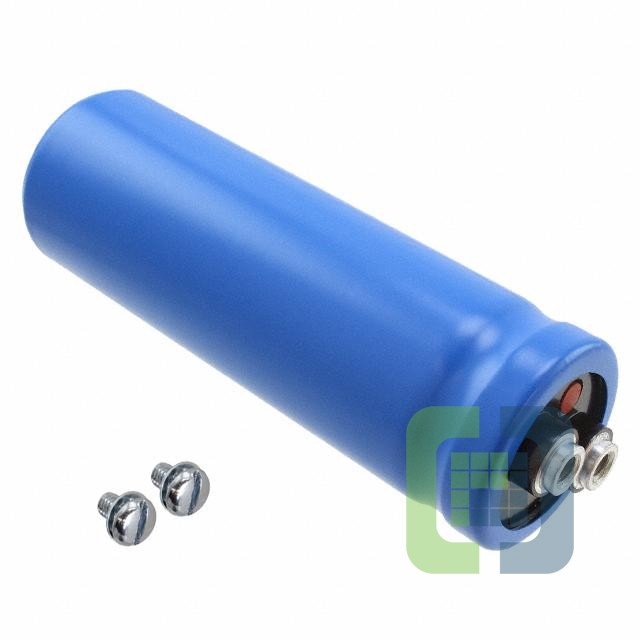

3186BE123T063APA1

Technical Details

• Series:3186
• Package:Bulk
• Part Status:Active
• Capacitance:12000 µF
• Tolerance:-10%, +50%
• Voltage - Rated:63 V
• ESR (Equivalent Series Resistance):21mOhm
• Lifetime @ Temp.:1500 Hrs @ 85°C
• Operating Temperature:-40°C ~ 85°C
• Polarization:Polar
• Ratings:-

• Applications:General Purpose
• Ripple Current @ Low Frequency:8 A @ 120 Hz
• Ripple Current @ High Frequency:10.4 A @ 10 kHz
• Impedance:-
• Lead Spacing:0.500" (12.70mm)
• Size / Dimension:1.375" Dia (34.93mm)
• Height - Seated (Max):4.125" (104.78mm)
• Surface Mount Land Size:-
• Mounting Type:Chassis Mount
• Package / Case:Radial, Can - Screw Terminals
